Filling machine · Machinery & equipment

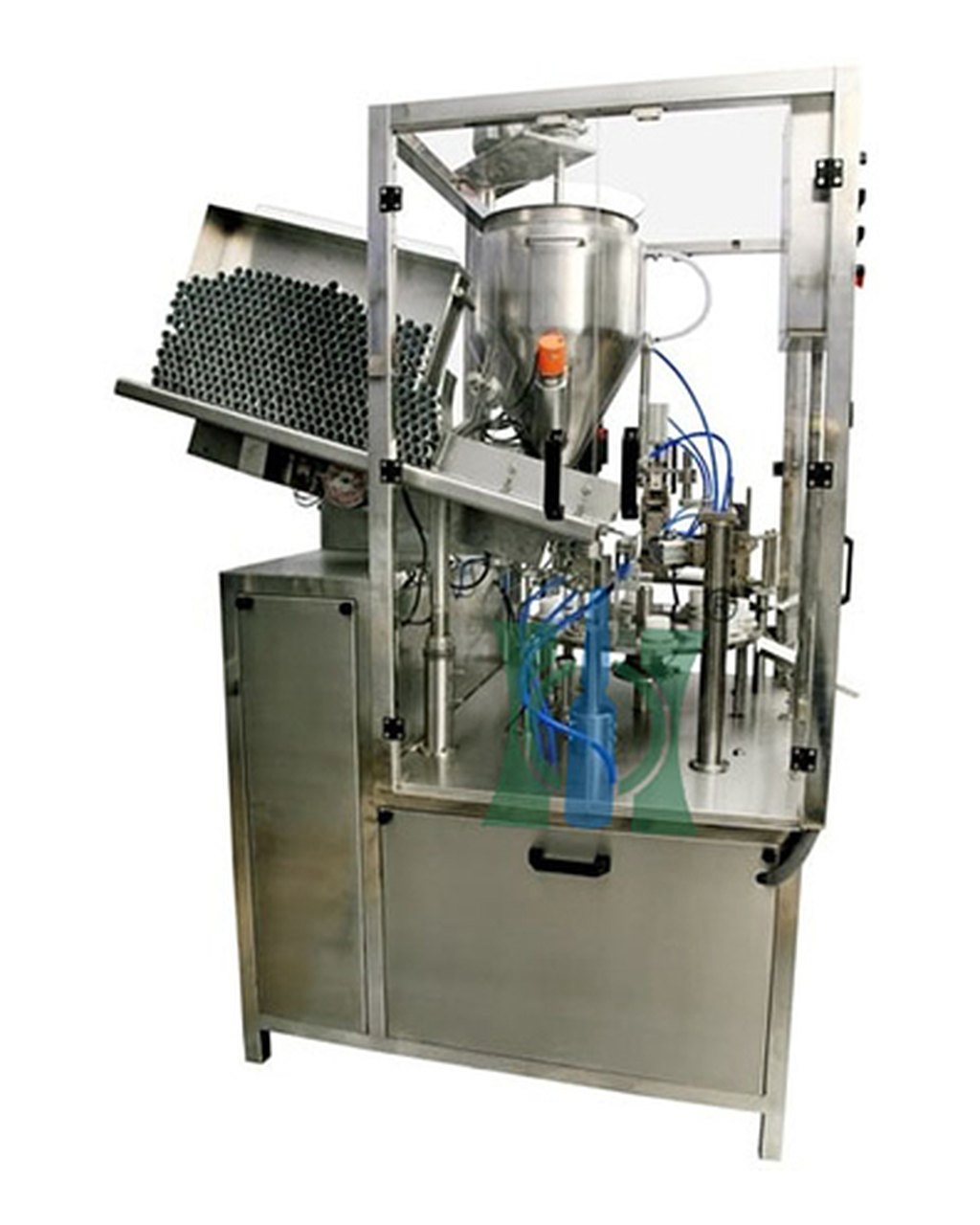

Tube filling and sealing machine
5+ suppliers
Shree Bhagwati Machtech (India) Pvt. Ltd.
Fills creams, ointments, gels and pastes into lami, plastic or aluminium tubes, then seals them by hot air (lami/plastic) or folds and crimps them (aluminium) and embosses the batch code. Semi-automatic rotary models with hand loading suit small cosmetic, ayurvedic and loan-licence units; automatic models with cassette loading and eye-mark orientation suit pharma and FMCG plants.
Capacity 4
- Semi-automatic 8 station (small unit, hand tube loading)
- Semi-automatic double head (small factory)
- Automatic 12 station with tube cassette (plant)
- High speed automatic (large plant)
Tube type 3
- Lami / plastic tubes (hot air sealing)
- Aluminium tubes (fold and crimp)
- Combo: lami and aluminium with change parts
Build 2
- SS 304 contact parts (standard)
- SS 316L contact parts, cGMP model
Spec
- Output
- 20 to 30 tubes/min (semi-automatic) up to 60 to 120 tubes/min (automatic)
- Fill range
- 3 g to 250 g with change parts
- Tube diameter
- 10 to 50 mm, length 50 to 200 mm
- Fill accuracy
- +/- 1%
- Sealing
- Hot air for lami/plastic tubes; double, triple or saddle fold crimp for aluminium tubes; batch coding on seal
- Power
- 1 to 5 kW; semi-automatic often single phase 230 V, automatic 440 V three phase
- Compressed air
- 6 bar
- Contact parts
- SS 316 / SS 316L, body SS 304 cladding
- Hopper
- 25 to 40 L, jacketed hopper with stirrer optional
- Operators
- 1
- Usual minimum
- 1 pcs
- HSN code
- 84223000
- GST
- 18%
