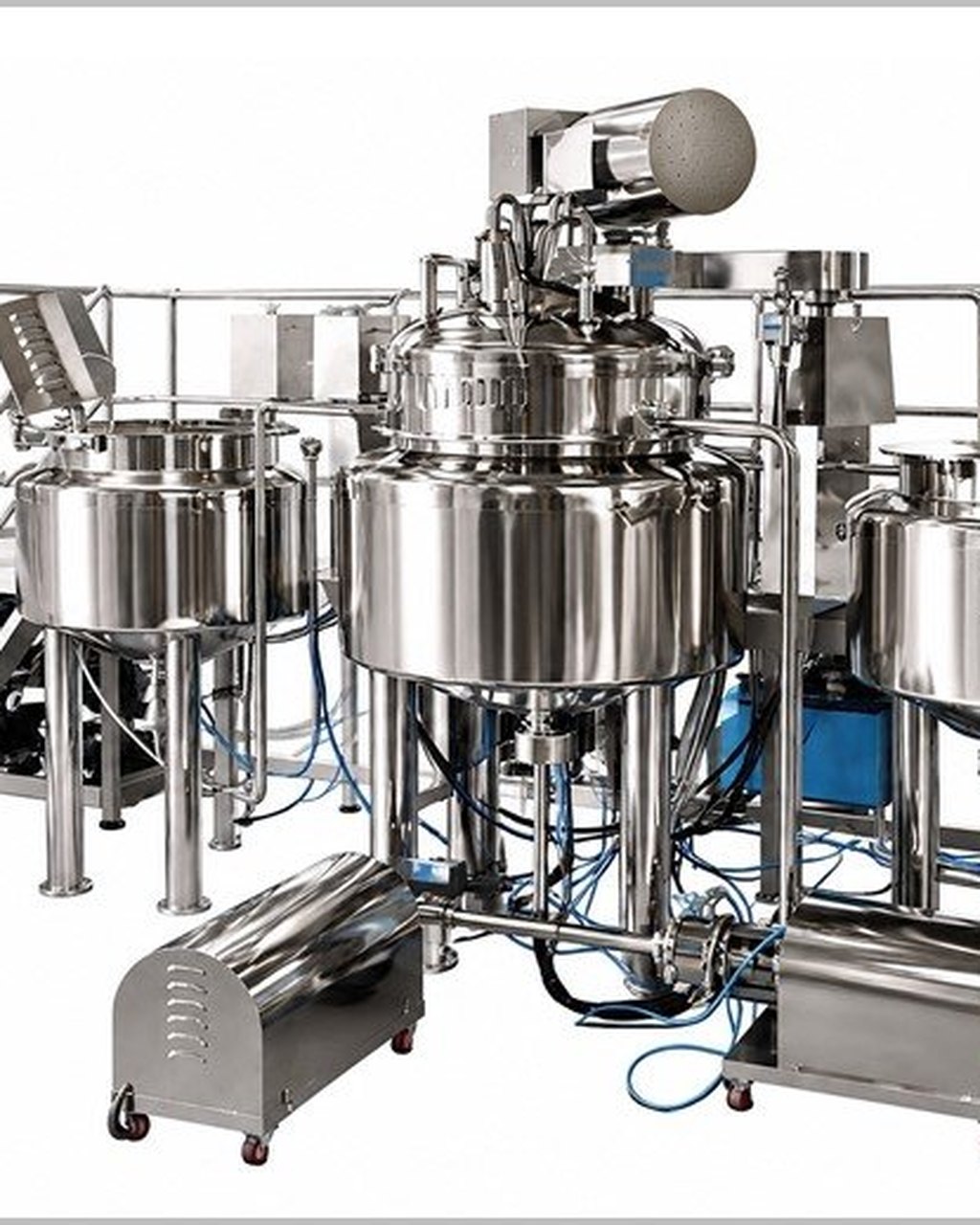

Ointment and cream manufacturing plant

Capacity 5

• Pilot 20 to 50 kg (R&D, small brand)
• 100 to 200 kg (small factory)
• 300 to 500 kg (mid plant)
• 1,000 kg (large plant)
• 2,000 kg and above (bulk line)

Automation 2

• Semi-automatic (manual valves, analog panel)
• Automatic (PLC with HMI, load cells, CIP option)

Build 2

• SS 316 contact parts
• SS 316L contact parts, cGMP finish

Spec

Batch size

20 kg pilot up to 2,000 kg (larger on order)

Set includes

Wax phase vessel, water phase vessel, manufacturing vessel, storage vessel, transfer and metering pumps, vacuum pump, piping, control panel, platform

Manufacturing vessel

Jacketed, full vacuum, contra or anchor agitator with scrapers, bottom homogenizer about 3,000 rpm, hydraulic lid lift

Heating

Electric or steam jacket; chilled water cooling in manufacturing vessel

Phase transfer

Wax and water phases sucked into main vessel under vacuum

Contact parts

SS 316 / SS 316L, structure SS 304

Power

Three phase 415 V; homogenizer 1 HP (50 kg) to 10 HP (2,000 kg)

Controls

Analog panel standard; PLC with HMI and recipe storage optional

Use

Creams, ointments, gels, lotions, toothpaste, face wash

Installation

Maker usually installs, trials and supports IQ/OQ documents

Usual minimum

1 set

HSN code

84798200

GST

18%
