Sealing machine · Machinery & equipment

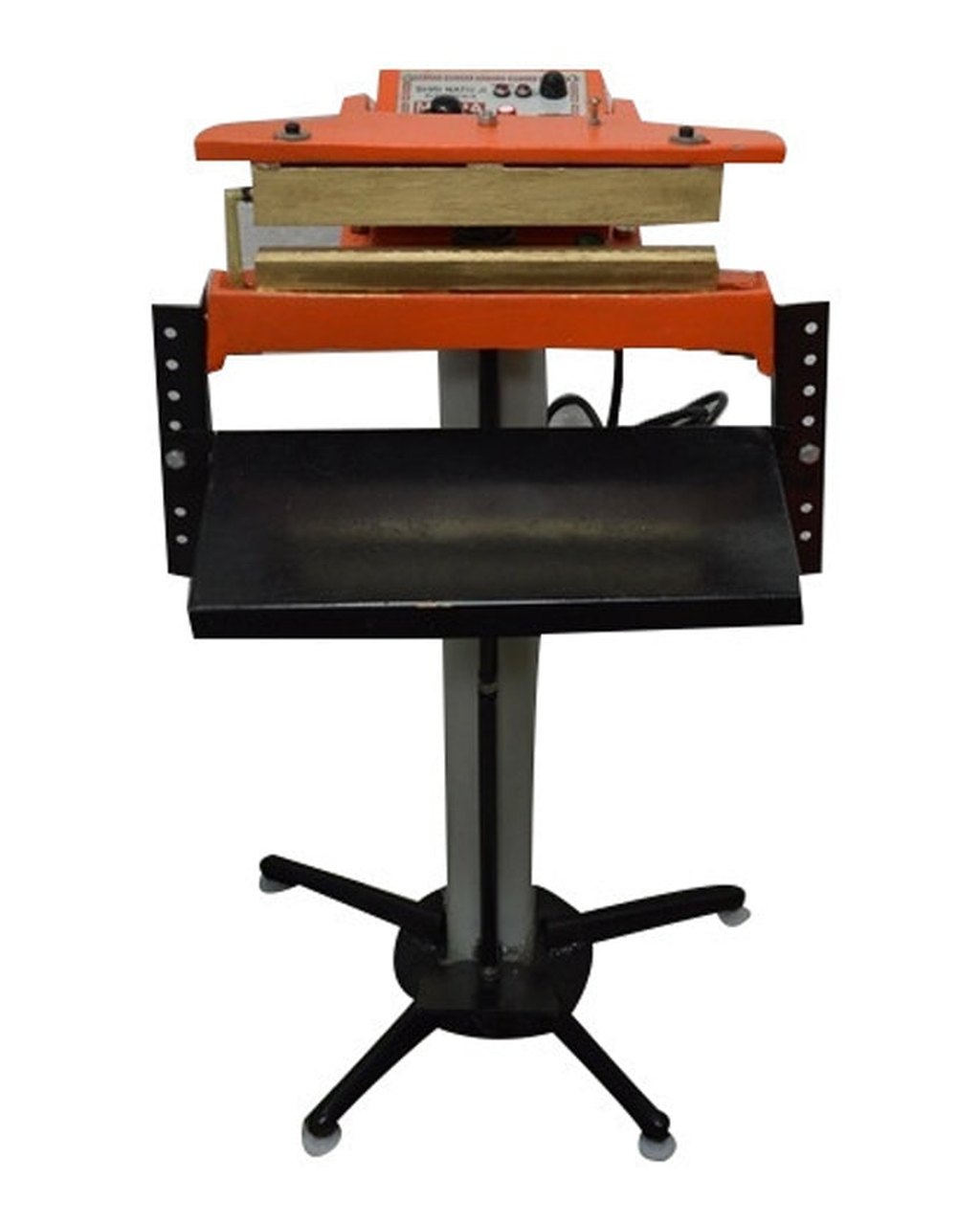

Impulse heat sealer, hand and foot operated
5+ suppliers
Simple heat sealer that closes plastic and laminated pouches with a heated wire or bar pressed by hand lever or foot pedal. The first sealing machine for home kitchens, cottage food units, D2C brands and dispatch counters, and a backup on bigger lines.
Capacity 5
- Hand tabletop, 200 to 300 mm seal (home / cottage unit)
- Hand tabletop, 400 to 600 mm seal
- Foot pedal, 300 to 600 mm seal (small factory)
- Foot pedal, 700 to 1,000 mm seal (bags and sacks)
- Pneumatic sealer with foot switch (line use)
Heating type 3
- Impulse wire (thin plastic films)
- Constant heat hot bar (laminates, foil)
- Double line seal
Seal width 4
- 1.6 to 2 mm
- 3 mm
- 5 mm
- 8 to 10 mm
Spec
- Output
- 300 to 600 pouches/hr, operator dependent
- Seal length
- 200 to 1,000 mm (8 to 40 in) by model
- Seal width
- 1.6 to 10 mm
- Pouch material
- LDPE, PP, BOPP, laminates, foil (hot bar for thick laminates)
- Power
- 300 W to 2 kW, single phase 230 V
- Control
- Electronic timer with heat and cool indicator
- Body
- Aluminium die-cast or MS powder coated; SS on request
- Operators
- 1
- Compressed air
- Not needed (only pneumatic models)
- Typical use
- Namkeen, spices, tea, sweets, garments, hardware
- Usual minimum
- 1 pcs
- HSN code
- 84223000
- GST
- 18%
