Cutting machine · Machinery & equipment

Automatic CNC fabric cutting machine

5+ suppliers

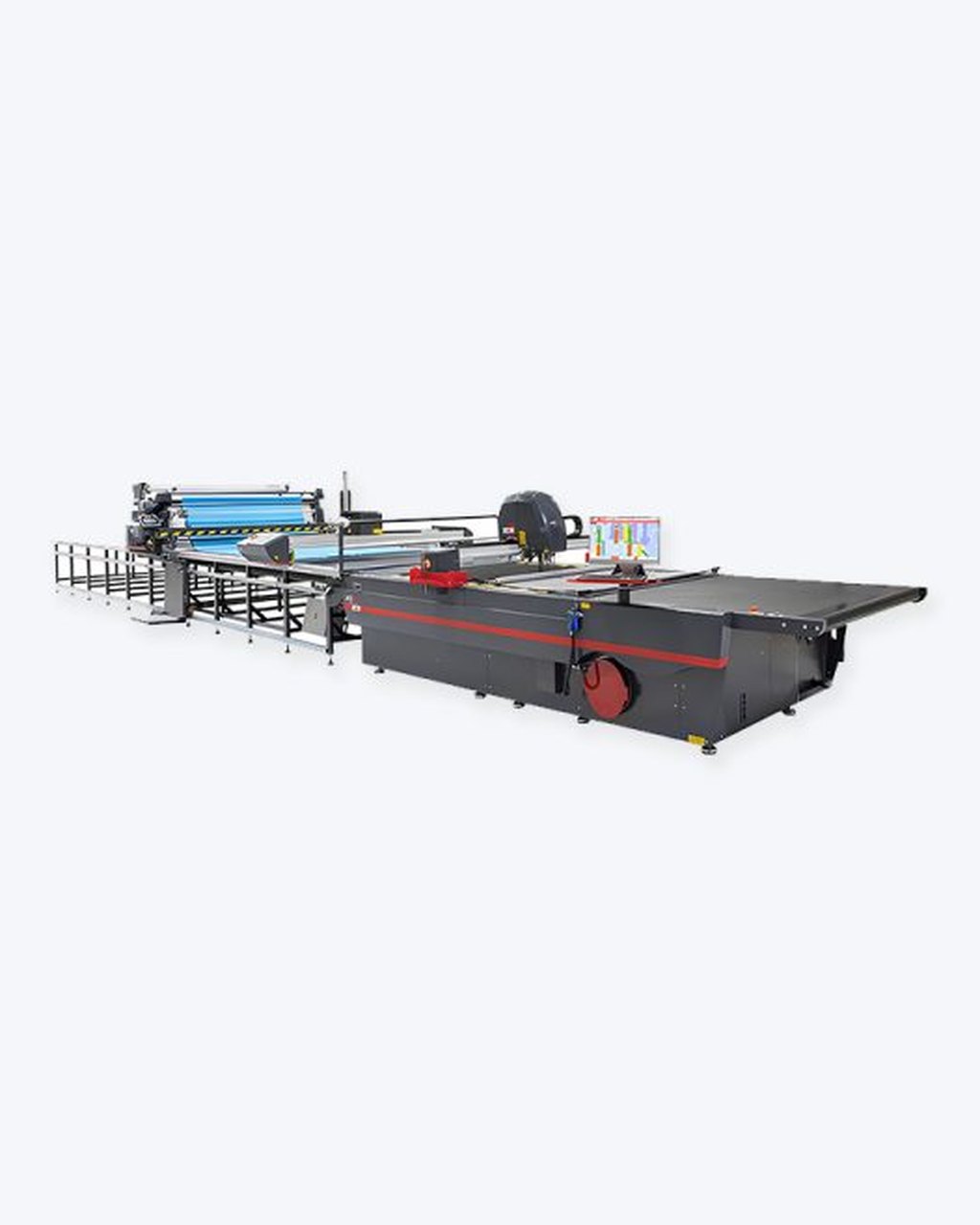

Automatic CNC fabric cutting machine, photo 2

Computer controlled cutter that cuts garment parts from a digital marker on a vacuum table, single ply for samples and short runs or multi ply for bulk orders. Saves fabric and cutting labour for mid size and large garment factories and sampling rooms.

Type and capacity 4

Single ply / low ply (samples, boutiques, small runs)
Multi ply 50 mm (mid size factory)
Multi ply 70 mm (factory, denim)
High ply 90 to 110 mm (large plant)

Table 2

Static table
Conveyor table (continuous cutting)

Spec

Cutting tool: Oscillating knife; round knife or drag knife on single ply heads
Cut height: up to 30 mm (single ply) to 110 mm compressed (high ply)
Cutting speed: up to 60 to 80 m/min
Cutting width: about 1.6 to 2.2 m
Vacuum: 7.5 to 18 kW vacuum pump with zoned suction
Power: Three phase 380 to 415 V; 10 to 24 kW installed
Software: Reads DXF / AAMA markers from pattern CAD
Extras: Drill or notch tool, conveyor table, knife cooler for synthetics
Installation norm: Installation and operator training by supplier
Warranty norm: 1 year
Usual minimum: 1 pcs
HSN code: 84515000
GST: 18%
